High-End DVB and IPTV Receiver (IRD), 4K | IRD-7000

BLANKOM IRD-7000

BLANKOM IRD-7000 is a professional IRD for broadcasters with DVB-S/S2/S2X tuner (DVB-T/T2, DVB-C, ISDB-T, ATSC, DTMB optional), GigE IP, and ASI inputs.
It has a CAM slot and an embedded BISS decryption utility. HD/SD-SDI, HDMI, and CVBS outputs are supported.

The BLANKOM IRD-7000 is a well-designed Integrated Receiver Decoder, supporting up to 4K*2K@60fps 10-bit decoding.

It has multiple 4K output interfaces, including 4*3G SDI, 12G SDI and HDMI 2.0.

Besides MPEG-2 and MPEG-4 AVC/H.264, it supports HEVC/H.265 video decoding.

Depending on the selected tuner option, its dual front end supports DVB-S/S2/S2x (DVB-C, DVB-T/T2, ISDB-T, ATSC, DTMB optional) and additionally ASI and IP input sources.

After de-multiplexing and decryption with a max of 2 CI modules, the decoded content can be passed to digital interfaces ASI, IP, and HDMI.

Its various A/V outputs support HD/SD-SDI, HDMI, CVBS, and stereo audio for universal professional needs.

With the 2 independent CAM/CI slots, the IRD-7000 supports multiple channel (tuner, ASI or IP) descrambling and transparent signal output.

BISS-embedded decryption supported.

Operation by using the front panel LCD or by the built-in comfortable web interface.

Inputs

2x Inputs, 1x DVB Tuner (DVB-S/S2/S2X or DVB-T/T2/C or ISDB-T or ATSC or DTMB), 2x ASI, GbE IP
Video Outputs

HD/SD-SDI, 2x ASI, HDMI, CVBS
Key features

Flagship next-generation IRD for professional broadcast applications

4K×2K @ 60 fps, 10-bit HEVC decoding capability

Multi-input design ensuring compatibility with all major transmission media

Advanced remultiplexing:

Creation of custom transport streams (subsets of original TS)

Output as SPTS/MPTS over IP and ASI

Dual DVB-CI interfaces:

Decryption of multiple services within one or two transport streams

Broadcast-quality decoding for:

MPEG-2

MPEG-4 AVC/H.264

HEVC/H.265

SD / HD / UHD formats

Comprehensive output interfaces:

CVBS analog video

HDMI

4 × 3G-SDI

Aspect-ratio adaptation for HD content to generate professional baseband video/audio

Optimized for distribution and contribution networks

All-in-one architecture for simplified deployment and integration
Ordering guide

IRD-7000 with 4x DVB-S/S2/S2X tuner
IRD-7000T with 4x DVB-C/T/T2 tuner
IRD-7000I with 4x ISDB-T tuner
IRD-7000A with 4x ATSC-T tuner
IRD-7000D with 4x DTMB tuner

Share this product

High-End 4K@60fps IPTV & DVB IRD with CI slots



BLANKOM IRD-7000 is the flagship of the IRD family. Integrated Receiver & Decoder for satellite-tv, terrestrial-tv or cable-tv (DVB-S/S2/S2X, DVB-T/T2, DVB-C, ISDB-T, ATSC, DTMB) and IPTV. After de-multiplexing and de-encryption with the CAM modules, it gives content out through ASI, IP, and as decoded service through 12G/HD/SD-SDI, HDMI, and CVBS outputs. It supports up to 4K*2K@60fps 10-bit decoding.

BLANKOM IRD-7000 Front panel

Video Processing & Decoding

  • Supports HEVC/H.265, MPEG-4 AVC/H.264, MPEG-2

  • SD, HD, and UHD/4K decoding

  • 10-bit, 60 fps HEVC decoding

Input Interfaces

  • Multi-input design for compatibility with all major transmission media

  • Supports reception of diverse broadcast transport streams

Remultiplexing

  • Advanced TS processing engine

  • Creation of custom transport streams derived from the original TS

  • Output of SPTS or MPTS over IP and ASI

Descrambling

  • Dual DVB-CI slots

  • Decrypts multiple services within one or two transport streams

Output Interfaces

  • 4 × 3G-SDI

  • HDMI

  • CVBS analog video

  • Digital & analog audio outputs

  • IP and ASI outputs for SPTS/MPTS delivery

Video Adaptation

  • Automatic aspect-ratio conversion for HD sources

  • Generates broadcast-grade baseband video/audio for legacy infrastructure





  • 1 Tuner DVB-S/S2/S2x L-Band Input (DVB-T/T2, DVB-C, ISDB-T, ATSC, DTMB optional)
  • Supports DVB-S2 Input Stream Identifier and DVB-T SFN MIP pass-through
  • 2x ASI and IP (UDP) Inputs (and Outputs)
  • Redundant backup among Tuner, ASI and TS/IP with configurable priority
  • 2x independent CI-Slots for 2x CAM modules
  • TS from ASI/Tuner/IP
  • 1x GbE Streaming
  • IP stream out: UDP/RTP, SRT (option), Unicast/Multicast, and double full duplex SPTS/MPTS over IP
  • HD/SD-SDI, 2 ASI, HDMI, CVBS Video Outputs
  • Multiple 4K output interfaces, 4*3G SDI, 12G SDI and HDMI 2.0
  • Supports HDR10/HLG
  • Audio: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2,
  • Dolby Digital/Dolby Digital Plus decoding and AC3 pass-through
  • Video: HD/SD MPEG2, MPEG4 AVC/H.264, H.265/HEVC decoding
  • Embedded TS re-multiplexer receiving from ASI, tuner, and TS/IP Inputs
  • 2×DVB-CI Slots, support for all major CAS and CAMs, BISS-1 and BISS-E descrambling
  • Dynamic PMT detection and automatic updating
  • Supports VBI TELETEXT, EBU/DVB Subtitle, and Closed Caption
  • Remote Control and Supervision by SNMP, HTTP WEB, and Proprietary HDMS software
  • One alarm relay with D-sub 9 male connector
  • On-site software update through IP and USB
  • RSSI, received Eb/No & BER monitoring
  • Dual redundant power supplies
  • Web-based Management = NMS Network Management

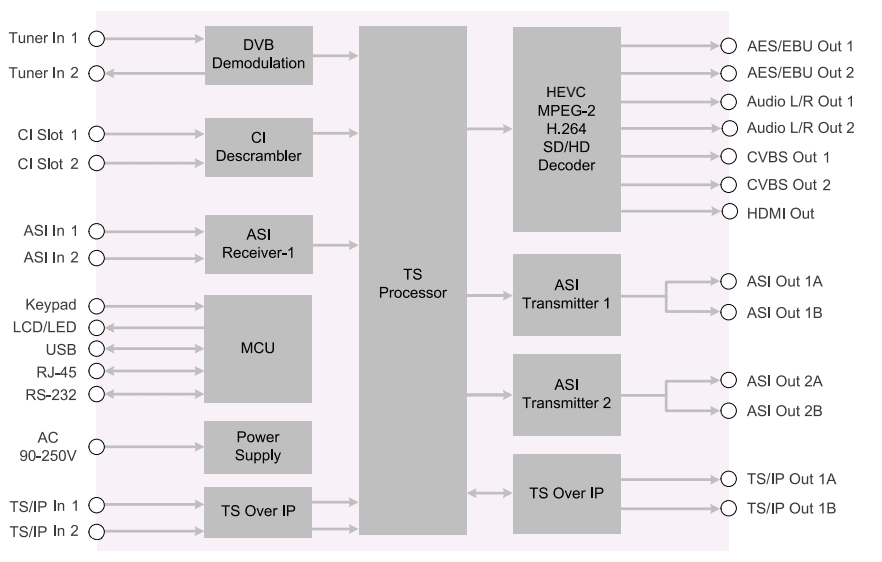

BLANKOM IRD-7000 functional block diagram





BLANKOM IRD-7000 back panel





Tuners
DVB-S/S2 tuner (ISI factory option)
Connector type 2*F-type female 75 Ohm for Input
Input frequency range
950 ~ 2150 MHz
Input signal level
-25 ~ -65 dBm
Symbol rate
1 ~ 45Msps
Smoothing factor
DVB-S: 0.35
DVB-S2: 0.35, 0.25, 0.2
FEC Code Rate
DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Selecting LNB voltage and polarity
 0, 13V, 18V selectable
LNB Band Selection Tone
0/22KHz selectable
Satellite Selection Command
DiSEqC 1.0
ISI ID
1 ~ 255 user configurable
DVB-S/S2 tuner (16APSK/32APSK factory option)
Connector type
2*F type female 75 Ohm for Input
Input frequency range
950 ~ 2150 MHz
Input signal level
-25 ~ -65 dBm
Symbol rate
QPSK/8PSK/16APSK: 2 ~ 45Msps
32APSK: 2 ~ 37Msps
Smoothing factor
DVB-S: 0.35
DVB-S2: 0.35, 0.25, 0.2
FEC Code Rate
DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Selecting LNB voltage and polarity
 0, 13V, 18V selectable
LNB Band Selection Tone
0/22KHz selectable
Satellite Selection Command
 DiSEqC 1.0
DVB-C tuner
Connector type
2*F type female 75 Ohm for Input
Input frequency range
51 ~ 862 MHz
Input signal level
45 ~ 75 dBmkV
Symbol rate
1 ~ 7MBaud (ITU J.83 Annex A)
Modulation modes
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth
6 MHz, 7 MHz, 8 MHz
Input return losses
7dB (typ.)
DVB-T/T2 tuner
Connector type
2*F type female 75 Ohm for input,
Input frequency range
104 ~ 862 MHz (VHF/UHF)
Input signal level
-20 ~ -70 dBm
Modulation modes
DVB-T: QPSK, 16QAM, 64QAM
DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6 MHz, 7 MHz, 8 MHz
FFT mode
DVB-T: 2K, 8K
DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
Protective interval
DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate
DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input return losses
7dB (typ.)
ASI input
Connector type
2*BNC female, 75 Ohm
Standard
DVB-ASI, EN50083-9
Incoming bitrate
no more than 200 Mb/s
TS over IP
Connector type
2*RJ-45 independent, 100/1000 Base-T for TS/IP
Effective bitrate
800 Mb/s for 16*SPTS/MPTS IP Out,
200 Mb/s for 1*SPTS/MPTS full duplex (single channel IP In and single channel IP Out)
Protocol
UDP/RTP, Multicast/Unicast, IGMPv3, ARP
FEC
SMPTE 2022 (formerly ProMPEG) 1-dimensional and 2-dimensional auto-adaptive settings for the inputting TS
(Note: under full duplex mode only, 150 Mb/s effective bit rate for both input & output)
 TS processing
Incoming flows
Demux and Remux among Tuner / DS3(optional) / E3 (optional), ASI and TS/IP Inputs
Outgoing flows
Demux and Remux for 2 independent ASI outputs
PSI/SI
Remuxing, filtering, and remapping
Descrambler
PSI/SI table regeneration, NIT and SDT edition, LCN edition and regeneration, and EIT P/F edition
BISS modes
DVB Common Scrambling Algorithm (CSA)
TS processing
BISS-1, BISS-E
Common Interface (CI)
Dual PCMCIA slots, compatible with most PCMCIA CAMs on the market
ASI output
Connector type
2 pairs, 4*BNC female, 75 Ohm
Standard
DVB-ASI, EN50083-9
Output bitrate
no more than 200 Mb/s
Stream processing
2 independent pass-through streams or mixed from tuner, TS/IP, and 2 ASI inputs
HDMI output
Standard
1*HDMI 2.0 interface, HDCP 2.2
Video resolution and frame rate
4KP60, 4KP50, 1080P60, 1080P50, 1080P30, 1080P24, 1080I60, 1080i59.94,1080I50, 720P60,720P59.94, 720P50, 480P, 576P, 576I, 480I
Audio Embedded
1*stereo
Video decoding
Video Profile/Level
 MPEG2 SP@ML, MP@HL,
MPEG4 SP@L0-3, ASP@L0-5, GMC,
H.264 BP/MP/HP@ level 5.0,
H.265 Main Profile @ L5.0 High-tier
Audio Decoding
Audio Format
MPEG-1 Layer 2
 a. 2 stereo pairs (stereo, dual mono, left, right)
MPEG-2 AAC
a. 5.1 down-mix to 2.0 (stereo, dual mono, left, right)
b. 2.0 (Stereo, Dual Mono)
MPEG-4 HE-AAC v1/v2
a. 5.1 down-mix to 2.0 (stereo, dual mono, left, right)
b. 2.0 (Stereo, Dual Mono, Left, Right)
Analog video output
CVBS connector
1*BNC female 75 Ohm
CVBS standard
NTSC, PAL, and SECAM
CVBS resolution
576i*25, 480i*29.97
Nominal level
1.0 Vp-p±5% (with standard test pattern)
Frequency Response
<±1 dB, at 5.5 MHz for PAL/SECAM, 4.2 MHz for NTSC
Chroma-Luma Delay
<±30 ns
Field Time Distortion
<2%
Line Time Distortion
<1%
Short-Time Distortion
<2%
Differential Gain
<3%
Differential Phase
<2°
Signal-to-Noise Ratio
>55 dB (luminance weighted)
Analog audio output
Connector type
2*BNC female
Resistance
75 Ohm
Exit mode
Left, Right, Dual Mono, Stereo
Number of outputs
2 stereo pairs (2 audio PIDs or 4 channels are decoded)
Cross Talk Among Channels
>70 dB
THD
<0.3% @ 400 Hz, 1 KHz test tone
Frequency Response
±0.5 dB over 20 Hz ~ 18 kHz
Output level
0dBm in 600 Ohm (0dBu), adjustable range ±10dB
Processing auxiliary data
Subtitles
DVB, EBU
VBI
Teletext, WSS
Closed Caption
EIA 608, EIA 708, EIA 608-to-708
Redundancy
Redundancy Port
among tuner, ASI input, and TS/IP input
Switching Condition
TS Sync Loss
Switching Mode
Main, Spare
Control & Monitoring
Connector type
1*RJ-45, 10/100 Base-T, for device management and monitoring
Remote control
SNMP 2.0, HTTP (web interface), HDMS (Headend Device Management System) of our own design
Local control
LCD display and 6 control buttons on the front panel
Serial Port
1*RS-232 D-sub female, for developer use only
Updating your device
Telnet/FTP, WEB/HTTP, or USB
Physical parameters
Dimensions
1U 19″ Full-rack size, 445mm (length) * 320mm (width) * 45mm (height)
Weight
5.0 kg
power unit
AC 90V ~ 250V, 50/60Hz
Power consumption
30 W (exclusive of LNB power)
Operating temperature
0 ~ 45 o C
Storage temperature
-10 ~ 60 o C
Operating humidity
10–90%, non-condensed
Certificates
EMC: EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007, EN 61000-3-2:2006, EN 61000-3-3:2008
FCC: Part 15 Class B
LVD: EN 60950-1:2006 + A11:2009

Specifications are subject to change without prior notice.

BLANKOM IRD 6300 Application 2

BLANKOM IRD 6300 Application 1



To accommodate diverse global digital broadcasting and telecommunication standards within a single hardware architecture, the IRD-7000 series offers five specialized variants:

  • IRD-7000: Configured with 4x DVB-S/S2/S2X satellite tuners.

  • IRD-7000T: Configured with 4x DVB-C/T/T2 digital cable and terrestrial tuners.

  • IRD-7000I: Configured with 4x ISDB-T tuners (optimized for South American and Japanese regional networks).

  • IRD-7000A: Configured with 4x ATSC-T tuners (optimized for North American broadcast standards).

  • IRD-7000D: Configured with 4x DTMB tuners (optimized for Chinese and specialized international deployment layouts).

The IRD-7000 platform is equipped with 4 independent Common Interface (CI) slots on the front panel. This high-density architecture allows the insertion of standard professional Conditional Access Modules (CAMs) paired with operator Smart Cards. The internal multiplexing matrix enables the simultaneous descrambling of multiple encrypted TV programs or entire Multi-Program Transport Streams (MPTS) directly at the headend level before routing to downstream networks.

Yes, the IRD-7000 functions as an enterprise-grade turn-around IP Gateway. It efficiently ingests raw RF signals from its 4 tuners, performs necessary hardware descrambling, and multiplexes the transport streams into IP payloads. The dedicated Gigabit Ethernet output interfaces support transmitting up to 48x SPTS (Single Program Transport Stream) or MPTS streams simultaneously over UDP and RTP protocols, utilizing both Unicast and Multicast network topologies.

To guarantee seamless backward compatibility with traditional television headends and studio distribution blocks, the IRD-7000 includes physical ASI (Asynchronous Serial Interface) input and output BNC ports. This allows headend engineers to route external transport streams through the IRD’s multiplexing processor or output descrambled feeds directly into legacy hardware modulators and statistical multiplexers.

Yes, the satellite-tuner variant (IRD-7000 base model) features advanced, independent LNB power management across all 4 RF inputs. Network operators can configure 13V/18V voltage switching and 0/22KHz tone signaling via the software interface to lock into specific satellite polarizations and frequency bands. It also natively supports the DiSEqC 1.0 protocol, enabling the unit to control multi-satellite coaxial switches directly without external hardware power injectors.

The IRD-7000 integrates a powerful hardware multiplexer engine that gives operators absolute control over stream metadata. It supports comprehensive BISS-1 and BISS-E descrambling for secure satellite contribution feeds, alongside advanced packet management features including PID Remapping, Service Name Editing, PCR Correction, and Program Filtering to build highly tailored custom channel lineups.

The IRD-7000 family is engineered specifically as a high-availability, high-density RF-to-IP/ASI turn-around gateway designed to ingest and distribute transport streams across digital infrastructures. It focuses its hardware processing power entirely on high-throughput multiplexing and streaming over IP/ASI networks rather than providing multi-channel physical baseband video decoding outputs (such as HDMI or SDI) per tuner.

The hardware is equipped with an independent, dedicated Network Management System (NMS) Ethernet interface. All parameters—including tuner signal levels, MER, Eb/No thresholds, CAM statuses, and IP multicast targets—can be configured via a responsive, user-friendly browser-based WebGUI. For centralized central monitoring, full SNMP integration is supported to trigger automatic real-time alerts and telemetry tracking.

To satisfy operator-grade high-availability constraints, the IRD-7000 is built inside a ruggedized 1U rack-mountable industrial metal chassis. It can be optioned with dual redundant hot-swappable power supplies (supporting AC or DC loops). This hardware redundancy guarantees that if a main power rail suffers an outage, the secondary power unit instantly sustains the full system load without causing signal drops or system reboots.

Engineered strictly to function as core infrastructure for telecommunication operators, ISPs, and large hospitality headends, the IRD-7000 is built with industrial-grade components and an automated temperature-controlled cooling layout. Operating on a highly stable, hardened embedded operating system, it is fully certified to deliver %99.999 continuous uptime (Five Nines) under constant 24/7/365 heavy-duty operational loads, eliminating the risk of packet loss or hardware-induced service interruptions.







Products that complement or substitute this item:
