Multiswitch for DVB and IPTV Headend, 1 Satellite
BMS series cascadable headend multiswitch with redundant dual power supply for 1 satellite in a 19″ rack-mountable enclosure. No regular service and maintenance are needed during operation.
At a glance
Key data, as supplied by engineering- 4 Sat-IF signals from 1 Quattro or Quad LNB
- 1 Terrestrial or CATV RF signal (47 … 870 MHz)
- 12 Wide band user outputs (47 ... 2150MHz)
- Dual redundant power supply for professional applications
- Designed for installation into 19 inch racks = 1RU
- Up to 7 cascading’s possible
- Low-power consumption
- LNB powering ON/OFF selectable
- LNB supply 13-18V, 13V-18V+22KHz and up to 2.5A in total
- QUAD LNB compatible
- Lossless sharp filter design
- Trunk loss in average less than 2dB
- Gain Adjusting by 4 potentiometers
- High Isolation between outputs
- Output port protection up to 100 Volts
- LED indicators for each output
- High performance isolated industrial power supplies
- Professional RF design for DVB IPTV and Digital Headend’s
Overview
Product description
BMS series cascadable headend multiswitch with redundant dual power supply for 1 satellite in a 19″ rack-mountable enclosure.
No regular service and maintenance are needed during operation.
Headend Multiswitch, 1 Satellite (4 Sat-IF) + RF in, 12 Users out
BLANKOM Multiswitch optimized for use in Headends. 4 in/12 out+RF cascadable and non-cascadable Multiswitch for distribution of satellite signals from 1 satellite position (4 polarities) to 12 users. Redundant power supply, designed for heavy-duty use, in a 19″ 1 RU rack-mountable enclosure.
Features & capabilities
Features

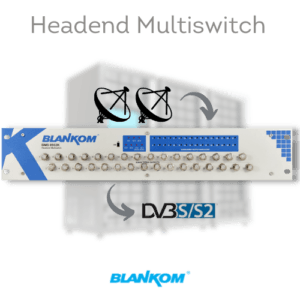

BLANKOM BMS-0512C is a high-performance 1x Satellite Multiswitch for digital TV broadcasting Headend systems with a high-end performance.
Designed for the modern 19’’ rack mounting installations. This professional Multiswitch can be cascaded and is useful to grow with your demands. If more receiver outputs are needed, simply add a second device in your 19’’ Rack. (Up to 8 cascading devices in one chain are possible.)
The LNB power can be set to ON or OFF to be almost flexible for the combination with non-powered devices like optical LNB or similar optical transmitter – receiver couples like the BLANKOM BFT-44 (4x fiber transmitter) to BFR-44 /4x (fiber receiver).
LEDs are showing the actual status, as well as gain adjustments for the 4 SAT levels, securing a flexible installation even with multiple LNBs supported.
- 4 SAT-IF inputs, 1 terrestrial input, 12 receiver outputs
- Active terrestrial band input (passive optional available)
- 5 cascade throughput (models BMS-0512C, BMS-0512C* only)
- 19″ 1 RU rack mountable enclosure
- Dual (redundant) power supply
- Up to 7 cascaded Multiswitch possible
- Low-power consumption
- LNB powering ON/OFF selectable
- LNB supply 13-18V, 13V-18V+22 kHz = QUAD LNB compatible
- DiSEqC 1.0 support
- 950-2150 MHz and 47-870 MHz lossless sharp filter design
- Trunk loss is on average less than 2 dB
- High isolation between outputs
- Output port protection up to 100 Volts
- LED indicators for each output
- High performance isolated industrial power supplies
- Professional RF design for DVB IPTV and Digital Headend’s
- Professional quality, breakthrough price
Front and rear panels
Front and Rear Panels
Application examples
Application Example
Capacity: All TV channels from 24 transponders in 1 satellite and from local DVB-T/T2 antenna
Equipment list:
- 2 pcs BLANKOM BMS-0512C Headend Multiswitch
- 1 pce BLANKOM IGS-924 DVB to IP Gateway
Applications
Multiswitch optimized for use in DVB and IPTV Headends.
Can feed Headend equipment with SAT-IF signals of different satellites, or can directly feed satellite receivers of households with IF+RF signals combined.
Technical specifications
Specifications are subject to change without prior noticeTechnical Specifications
| Typ | BMS-0512 | BMS-0932/-1732 |
| Inputs | 5 IN: 4x SAT, 1x TER | 9/ 17 IN: 4x 4x SAT, 1x TER |
| User Outputs | 12 | 32 |
| Impedance Inputs – and Outputs | 75 Ohm F-Female | |
| Frequency Range SAT | 950 … 2400 MHz | |
| Frequency Range TER | 40… 862 MHz | |
| Trunk outputs | 5 (4x SAT + 1x TER) | 9/17 (2/4x 4x SAT + 1x TER) |
| Insertion Loss SAT | -2 dB ±0.5 dB | -2… 0 dB ±2 dB / -5… -2 dB ±2 dB |
| Insertion Loss TER | -1 dB ±0.5dB | -2 dB ±2dB / -3 dB ±3dB |
| Through loss SAT | -2 … +2 dB ±1dB | -2… -4 dB ±2dB /-2…-5 dB ±2dB |
| Through loss TER | +4 dB ±1dB | -2 dB ±4dB / -4 dB ±2dB |
| Isolation TER/SAT | 30 dB typ | |
| Max. output level SAT (IMD3 35dB) acc. EN 50083-3 | 105 dBµV | |
| Max. output level TER (IMD3 60dB) | 88 dBµV | 90 dBµV |
| Isolation H/V | 30 dB typ. | |
| Input return loss SAT | > 10 dB | |
| Input return loss TER | > 10 dB | |
| LNB supply on all LNB inputs | through 2x int. PSU 15V DC 3,3A or by remote through trunk lines |
|
| Max. LNB supply current | 800mA | 1600 mA |
| Output return loss SAT | > 10 dB | |
| Output return loss TER | > 10 dB | |
| Current consumption (from Receivers) | 35mA | 35mA / 68 mA |
| Current consumption Multiswitch | 280…305mA | |
| Internal PSU 2x redundant | 90… 230 VAC to 15 VDC 3,3 A | |
| Dimensions (L x W x H) | 482 x 310 x 90 mm (2 RU) | |
| Switch commands | 13/18 V, 0/22 kHz, DiSEqC 1.0 | |
| Gewicht/ Weight | ca. 3200g | ca. 3250g / 3500g |
| Operating temperature range | -20… 50 °C | |
| AC Connector Types | 2x IEC (power) connector | |
Values for the optional Terrestrial-passive versions vary, obviously.
Class A might be valid only for SAT IF for some product types > 9 Inputs.
Improvements of measured values might happen during the product lifecycle and might not be up-to-date in this datasheet.
All Multiswitch up to 9 IN and 16 OUT are full CLASS A compliant.
All models are SAT-IF Class A.
Specifications are subject to change without prior notice.
