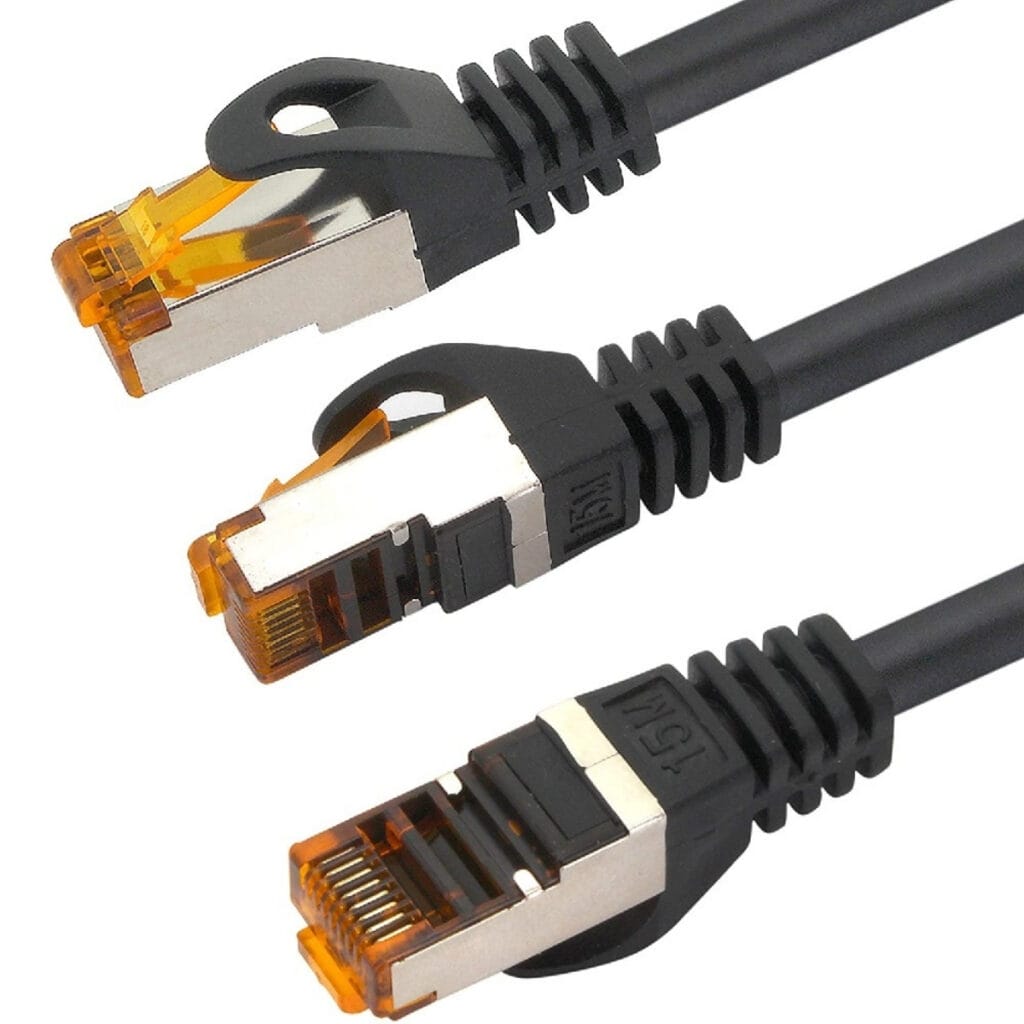

IRENIS Cat. 6A S/FTP Outdoor Patch cord
Cat. 6A S/FTP bare copper double-shielded cable for outdoor usage. Ideal for security technology, garden houses, sound systems, public viewing or other outdoor events. Dust, water and UV resistant.
At a glance
Key data, as supplied by engineering- IRENIS
- CAT6-4000
- 5m
- 7.50m
- 10m
- 15m
- 20m
- 25m
- 30m
- 40m
- 50m
- 60m
- 75m
- Black
Overview
Product description
Cat. 6A S/FTP bare copper double-shielded cable for outdoor usage.
Ideal for security technology, garden houses, sound systems, public viewing or other outdoor events.
Dust, water and UV resistant.
With an RJ-45 patch cable, you can connect, e.g. your smart TV, notebook, PC, or set-top box with a network router or network switch.
The Cat. 6A S/FTP cables are suitable for use in outdoor conditions.
Please note that this product is not suitable for unprotected installation in the earth. Please pay attention to the legal regulations. Take advantage of conduits/ductworks, for example.
Category 6A cable is specified for 500 MHz and has improved alien crosstalk characteristics, allowing 10GBASE-T to be run for 100-meter (330 ft) maximum distance.
Features & capabilities
- Patch cable Cat. 6A S/FTP PIMF
- Connections: RJ-45 plug to RJ-45 plug
- Compatible with 10GBASE-T, 1000BASE-T and below
- Transmission frequency up to: 500 MHz
- Bandwidth up to: 10 Gbps
- Pin assignment: EIA/TIA 568B
- Specification: Cat. 6A
- Backwards-compatible versions: Cat. 6, Cat. 5E and below
- Number of shielding: 2
- Shielding 1: ALU foil laminated PIMF (100% density)
- Shielding 2: ALU braid
- Shielding class: S/FTP
- Cable structure: AWG 27/7
- Wire material: copper
- Wire type: stranded
- Wire number: 8 (4 x 2 twisted pair)
- Plug: molded
- Length indication on sleeve
- Contact surface: pins gold-plated 3µ
- Plug material: plastic, copper shell nickel plating
- Kink protection: yes
- Latch protection: yes
- Cable type: round cable
- Material cable sheath: PE
- PE-Attributes: IP66, waterproof, oil resistant, UV resistance
- Diameter cable (ca.): 6.5mm
- Colour cable: black
- Colour plug inlay: transparent orange
