IP to QAM Modulator (Edge QAM) | HDC-5004

BLANKOM HDC-5004

Introducing the BLANKOM HDC-5004 IP to QAM Modulator, a cutting-edge solution designed for seamless integration of IPTV channels into DVB-C formats. This versatile modulator features an internal multiplexer and scrambler, allowing you to multiplex and modulate up to 512 IPTV channels into 4 DVB-C channels effortlessly.

With configurable RF frequencies, the HDC-5004 ensures optimal performance tailored to your specific requirements. Enjoy the convenience of remote control through any web browser, making management simple and efficient. This advanced unit supports both SPTS and MPTS input channels, whether unicast or multicast, providing flexibility in content delivery.

Experience the power of BLANKOM® Hybrid DVB & IPTV Headend Technology with the HDC-5004. Its internal multiplexer expertly creates 4 streams from various content combinations, ensuring a robust and dynamic broadcasting experience. Elevate your broadcasting capabilities with the BLANKOM HDC-5004 IP to QAM Modulator, the ideal edge QAM solution for transforming IP sources into superior DVB-C outputs.

It also has MPTS stream output of the multiplexed channels. Thus, it can be used as SPTS in MPTS out IPTV multiplexer.

The unit can be controlled remotely through the web with any web browser.

Application:

  • IP to QAM conversion at Headends
  • Edge QAM on CATV networks
  • Multiplexing SPTS IPTV channels into MPTS IPTV streams
Features

512 IPTV Input
Multiplexer
4 DVB-C (QAM) Output
4 IPTV MPTS Output
Ordering guide

HDC-5004: 4 DVB-C Channels

Share this product

IP to QAM (DVB-C) Modulator (Edge QAM), with up to 512 IPTV in, with Multiplexer, with 4 RF and 4 MPTS IP out

5. Generation BLANKOM® Hybrid DVB & IPTV Headend Technology. IPTV input, DVB-C, and IPTV output with multiplexer and scrambler.

The IPTV input channels can be SPTS or MPTS, unicast or multicast. The internal multiplexer creates 4 streams with any combination of content. The output consists of 4 DVB-C carriers within a 32 MHz bandwidth, each with up to 256QAM modulation. Each of the 4 output multiplexes is also provided as MPTS IPTV streams, UDP/RTP/RTSP, unicast or multicast at both the data ports.



BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator

  • 4 IP inputs, 1 RF output
  • Up to 512 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3 input
  • Max 100 Mbps for each Ethernet input
  • 4 adjacent QAM carrier outputs, compliant with DVB-C (EN 300 429) and ITU-T J.83 A/B
  • 4 multiplexed or scrambled TS over UDP/RTP/RTSP output
  • Accurate PCR adjusting
  • CA PID filtering, remapping, and PSI/SI editing
  • Up to 780 PIDS remapping per channel
  • Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
  • Supports RS (204,188) encoding
  • Web-based network management
  • Broadcast quality
  • Professional quality, breakthrough price

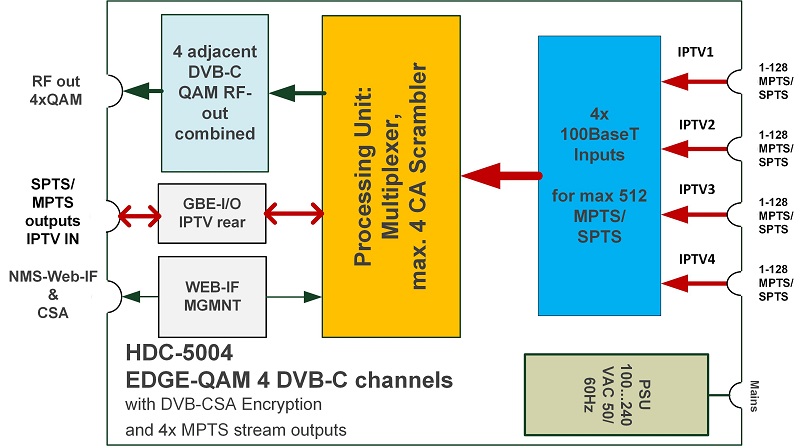

BLANKOM HDC-5004 IP to QAM Modulator Block Diagram

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator Application Example

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator Application Example

BLANKOM HDC-5004 modulates up to 512 SPTS or MPTS IPTV channels into 4 QAM (DVB-C) carriers within 32 MHz bandwidth, in broadcast quality.

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator



BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator rear

BLANKOM HDC-5004 IP to QAM (Edge QAM) Modulator rear



Function IP to DVB Modulator

FUNCTION

IP to QAM modulator with up to 512 IPTV inputs, 4 DVB-C, and 4 IPTV MPTS outputs

INPUT

  • IP input: 512 IP inputs, 4 100 Mbps Ethernet Ports
  • Transport protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3

MULTIPLEXING

  • Input channel quantity: 512
  • Output channel quantity: 4
  • Max PIDs 780 per channel
  • Functions: PID remapping (auto/manually optional), PCR accurate adjusting, PSI/SI table automatically generating
  • Scrambling parameters: Max simulscrypt CA: 4, Standard: ETR289, ETSI 101 197, ETSI 103 197, Local/remote connection

MODULATION

  • DVB-C (J.83A and J.83B)
  • QAM Channel: 4 adjacent carriers,
  • Standard: EN300 429/ITU-T J.83A/B
  • Constellation 16, 32, 64, 128, 256QAM
  • Bandwidth: 8 MHz (J.83A), 6 MHz (J.83B)
  • FEC RS (204, 188)

RF OUTPUT

  • 1 F-typed output port for 4 carriers, 75Ω impedance
  • Symbol Rate: 5.0Msps~7.0Msps, 1ksps steps
  • Output Level: -20dBm~+10dBm (87~117dBµV), 0.1dB stepping
  • MER ≥ 40dB,
  • ACLR: -60 dBc

TS OUTPUT

  • 4 IP outputs over UDP/RTP/RTSP, unicast/multicast, 4 Ethernet Ports

SYSTEM

  • Control: LCD/keyboard, network management (SNMP and WEB)
  • English language menu
  • Ethernet software upgrade

GENERAL

  • Dimensions: 430mm × 180mm × 44.5mm, 19” 1RU,
  • Approx. weight 3kg
  • Power: AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
  • Power consumption: 15.4 W
  • Temperature: 0~45℃ (operation), -20~80℃ (storage)

Specifications are subject to change without prior notice.



The BLANKOM HDC-5004 is a professional, compact edge IP-to-QAM modulation unit designed for digital cable TV (CATV) headends. It is engineered to ingest high-throughput IP transport streams (SPTS or MPTS) from local encoders, satellite gateways, or core networks and modulate them directly into standard digital cable RF channels for distribution over coaxial networks.

The hardware architecture of the HDC-5004 is specifically designed to generate exactly 4 independent DVB-C QAM RF carriers simultaneously from a single 1U chassis. This allows operators to bundle and distribute multiple television bouquets or digital radio services over four distinct frequencies across the coaxial infrastructure.

No. The HDC-5004 operates strictly at the stream transport, multiplexing, and physical RF modulation layers. It processes the underlying video and audio payloads transparently, meaning it does not decompress, transcode, or alter the resolution of MPEG-2, H.264 (AVC), or H.265 (HEVC) data packets, eliminating any processing artifacts or codec degradation.

The unit complies fully with professional B2B telecom IP broadcasting specifications. The network input layer natively supports low-overhead, line-rate UDP and RTP transport protocols with comprehensive Multicast and Unicast routing capabilities, ensuring stable stream termination from your central IP headend.

Yes, despite its compact 4-carrier output layout, the HDC-5004 features a fully integrated digital multiplexing engine. This core allows headend engineers to demultiplex incoming IP transport streams, execute precise PID filtering and PID remapping, inject custom descriptors, and freely assign selected programs into any of the 4 available QAM RF output channels.

The integrated digital modulator complies fully with ITU-T J.83A and J.83B digital cable standards. It supports 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM constellations with an adjustable symbol rate up to 7.0 Msps per carrier, ensuring universal tuning across standard digital television sets and legacy edge set-top boxes.

Yes. Because it possesses an integrated multiplexing core, the system automatically parses and rebuilds the necessary PAT, PMT, NIT, and SDT metadata tables in real time. Through the administrative user layout, operators can manually customize service names, modify provider strings, and assign Logical Channel Numbering (LCN) to present a clean channel guide to the end subscriber.

The agile RF output section spans the standard digital cable television spectrum from 50 MHz up to 960 MHz. Output parameters can be adjusted and attenuated through the web interface, ensuring an optimized signal-to-noise ratio, a high Modulation Error Ratio (MER), and exceptionally low phase noise for stable signal distribution.

System provisioning, IP input stream routing, channel multiplexing matrices, and RF modulation parameters are managed exclusively via an embedded WebGUI using a standard internet browser through a dedicated, independent Ethernet management port. This provides operators with a secure, responsive, and direct web-based control plane for full configuration layout.

The HDC-5004 is housed in a rugged, standard 19-inch 1U rack-mount industrial metal enclosure equipped with an efficient active cooling fan layout for stable 24/7/365 commercial headend uptimes. It features a reliable, dâhili single power supply unit optimized for energy efficiency and continuous local or regional cable edge deployments.
