What Is IPTV and What Kind of Equipment Is Used?

IPTV (Internet Protocol Television) is a method of delivering television content over IP-based data networks instead of traditional RF broadcast systems such as DVB-T/C/S, analog PAL/NTSC, or coaxial MATV infrastructures. In an IPTV environment, all video and audio essences are encapsulated into IP packets and transported through Ethernet, fiber, or wireless networks. This approach enables flexible distribution, centralized management, high scalability, and seamless integration with modern network infrastructures. For engineers and technicians, IPTV represents a highly controllable and deterministic method of TV signal delivery, ideal for hospitality, enterprise, education, public institutions, transportation hubs, and broadcast-grade installations.

IPTV Architecture — How It Works

A professional IPTV system typically consists of four main functional layers: signal acquisition, encoding/transcoding, processing & multiplexing, and distribution to clients. Each layer contributes to an optimized headend structure.

1. Signal Acquisition

IPTV starts with capturing content from multiple sources. These may include satellite dishes, HDMI/SDI cameras, professional IRDs, DVB cable inputs, baseband video equipment, or existing IP streams provided by a broadcaster. Proper signal acquisition ensures stable input formats, controlled resolution/bitrate, and clean audio/video synchronization.

In larger installations, redundancy, automatic failover, and monitoring to maintain stable operation are essential to detect signal loss or format changes.

2. Encoding, Transcoding & Format Conversion

Encoders are the core of an IPTV headend. They convert raw video sources into compressed IP video streams using codecs such as H.264/AVC, H.265/HEVC, or MPEG-2. The encoder’s output can be multicast or unicast, using streaming protocols like UDP, RTP, RTSP, SRT, or HLS.

Transcoders further optimize streams by adjusting bitrate, changing the codec, or generating multiple profiles for adaptive streaming. Engineers rely on transcoding to reduce network bandwidth or to ensure compatibility across diverse devices—SMART TVs, set-top boxes, mobile apps, or web browsers.

3. Processing, Remultiplexing, and Service Management

Once encoded, streams often require organization and processing. Multiplexers and remultiplexers aggregate multiple streams into MPTS, manage SI/PSI tables, remap PIDs, remove unwanted components, and prepare channel bouquets.

Additional processing tasks may include:

EPG (Electronic Program Guide) insertion
Logo and watermark embedding
Conditional Access System (CAS) integration
Network address translation for controlled multicast assignment

Technicians rely on this layer to achieve a clean, stable, and logically structured IP transport stream.

4. Distribution to End Devices

In the final layer, IPTV streams are delivered to end users. This can be:

Multicast for scalable delivery to hundreds or thousands of TVs
Unicast for VOD, catch-up TV, mobile viewing, or low-scale deployments

Network infrastructure becomes critical at this stage. Professional-grade switches with IGMP Snooping, IGMP Querier support, VLAN isolation, and QoS configurations ensure stable performance, prevent multicast flooding, and maintain timing accuracy.

Equipment Used in IPTV Systems

1. DVB to IP Gateways

DVB to IP Gateways receive broadcast RF signals (DVB-S/S2, DVB-T/T2, or DVB-C), demodulate them, and extract the MPEG transport streams. They then convert these streams into IP multicast or unicast packets for distribution over Ethernet networks, enabling seamless integration of traditional broadcast content into IP-based headends.

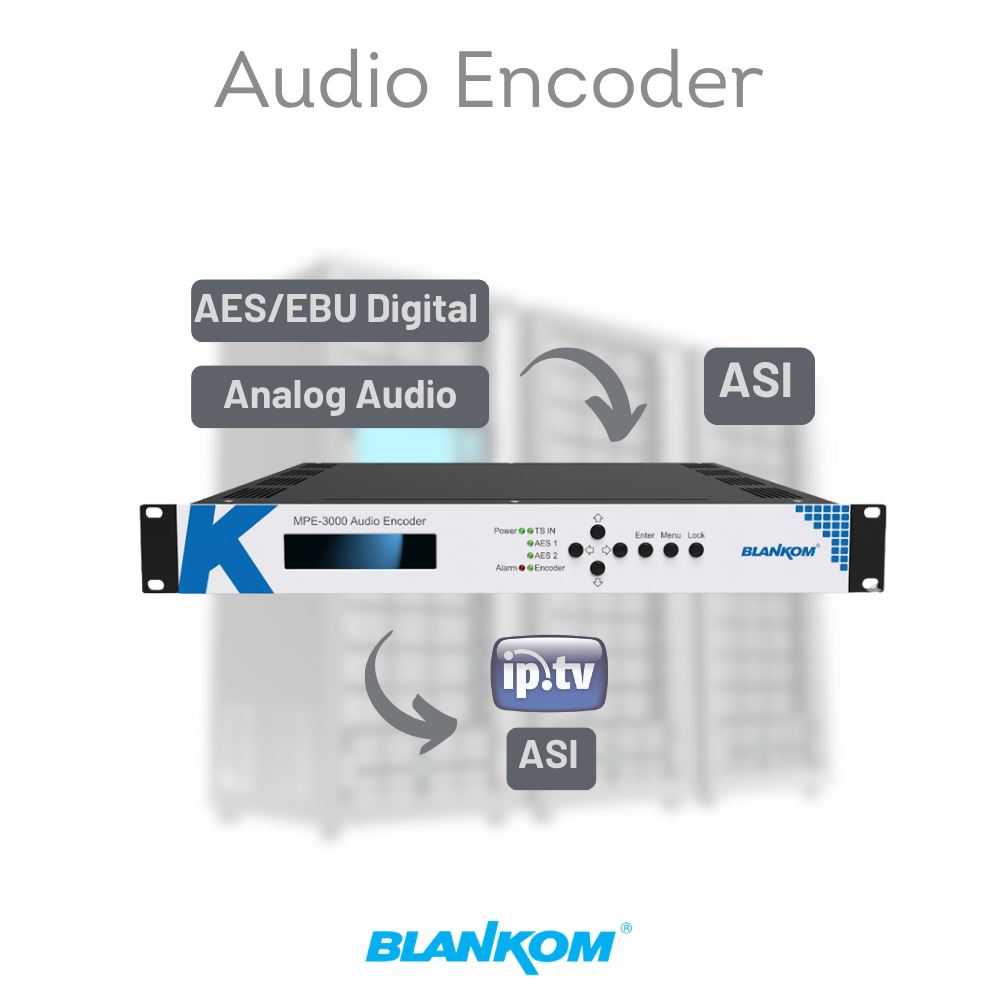

2. IPTV Encoders

IP Streaming Encoders convert HDMI/SDI/DVB inputs into IP streams using UDP, RTP, SRT, RTSP, or HLS suitable for network distribution. These devices offer:

H.264/H.265 encoding
Web-based management
Adaptive bitrate control
Support for CBR and VBR streaming

High-end encoders support redundant power, low-latency processing, and advanced bitrate control—ideal for hospitality and broadcast setups.

3. IPTV Transcoders

Transcoders optimize existing streams—lowering bitrates, converting codecs, or generating multiple versions of the same channel for different delivery platforms. In environments where bandwidth is limited or a mix of legacy and modern TVs exists, transcoders ensure full compatibility.

4. IP to IP Gateways, Multiplexers

An IP to IP Gateway receives existing IP multicast or unicast transport streams and processes them by filtering, re-multiplexing, rewriting headers, or converting protocols as needed. It outputs the optimized or reformatted streams back into an IP network, enabling flexible stream adaptation, routing, and interoperability in IPTV and broadcast headends.

A Multiplexer allows engineers to merge, restructure, or filter transport streams. They create service lists, tidy up PIDs, and prepare MPTS outputs. Multiplexers are crucial when creating a customized channel lineup or when integrating IP sources with DVB modulators.

5. IP to RF Modulators (DVB-C / DVB-T / ATSC), Edge QAMs

Hybrid TV systems often retain coaxial networks due to cost or structural limitations. In such cases, IPTV streams are re-converted to RF channels using IP to QAM Modulators. This method enables IP-based headends to feed thousands of TVs without replacing existing cabling.

6. IP Decoders, IPTV Settopboxes, IPTV IRDs

An IP Decoder receives compressed audio/video streams over IP (typically MPEG-TS over UDP/RTP or HTTP-based protocols) and decodes them into baseband outputs such as HDMI or SDI. It converts network-delivered streams into broadcast-quality video signals for displays, monitors, or further processing in professional headend systems.

An IPTV Set-Top Box receives IPTV streams over an IP network and decodes them into audio/video signals for a TV or display. It also manages channel selection, middleware communication, security/DRM, and interactive services to provide a complete end-user viewing experience.

A Professional IPTV IRD (Integrated Receiver/Decoder) receives encrypted or free-to-air IPTV streams—typically MPEG-TS over IP—and performs robust demultiplexing, decoding, and descrambling using broadcast-grade conditional access. It outputs high-quality baseband signals (SDI/HDMI), ASI, or re-IP streams, serving as a reliable link between IPTV delivery networks and professional broadcast or contribution workflows.

7. RF-over-Fiber Transport Systems

RF-over-Fiber technology is widely used in large buildings, stadiums, and multi-block campuses. It transports RF signals over long distances with minimal attenuation, providing a clean interface between satellite/cable sources and IPTV Headends.
